The B10210 timing belt repair kit on a car serves the following purpose: While the engine is service, the timing connection system constantly maintains synchronous operations of relevant parts, and ensures proper piston travel valve opening/closing and ignition sequences.
The timing belt is a consumable part. If it breaks, the camshaft will no longer run in the normal timing pattern. As a result, the air valve and the piston are very likely to collide with each other causing major damage. Therefore, the timing belt must be replaced after the accumulated mileage or operation period specified by automobile manufacturer is reached.
The timing belt is made of rubber. With increasing engine operation hours, the belt and its accessories, such as tension pulley, tensioner, and water pump, will wear or age over time. For this reason, all manufacturers of engines equipped with a timing belt have strict requirements for regular replacement of the timing belt and its accessories.
The timing belt also plays a bridging role, joining a timing pulley on the engine cylinder cover on the top and a timing pulley of the camshaft at the bottom.
The camshaft connected by a timing pulley has a cam that uses a small rocker arm as its contact. The rocker arm generates pressure with the power transmitted by the timing belt, and consequently provides upward lifting force.
This force lifts the air intake valve, allowing the atomized gasoline to enter the cylinder. When the exhaust valve is lifted, the exhaust is drained out of the cylinder.
When the sunken part (instead of the protruding part) of the camshaft contacts the small rocker arm, both the air intake valve and the exhaust valve are closed. A compression ratio is generated, and distributor ignition starts. The internal combustion process is initiated to provide power.

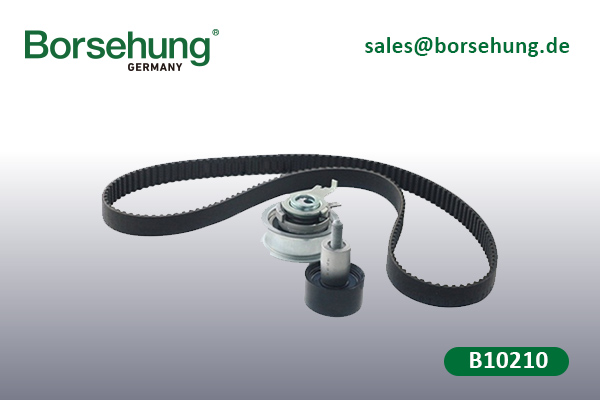

Product name: timing belt repair kit
Borsehung No. : B10210
Ref No. : 04E109479A+04E109244B+04E109119F
replacement Ref No. :
04C109479G/04C109479H/04C109479K/04C109479J/04E109479H+04E109244A/04E109244B/04E109244D/04E109244E+04E109119C
Applicable models:
Skoda: FAB15-/KAR18-/KOD17-/KODR18-/OCT13-18/RAP13-/SUP15-/YET14-18
VW: BE12-16/BEC13-16/CA16-/CC12-17/GOC12-16/GOLF13-17/GOSV14-/JE11-18/PA15-/PO13-18/SCI15-18/SHA16-/TCR19-/TIG12-18/TOU16-
Seat: AL16-/ARON18-/IB13-18/LE13-17/TAR19-/TO13-19
Audi: A1 11-19/A3 13-17/A3CA15-17/A4 16-/A4Q16-/A5CO17-/AQ2 17-/AQ3 12-19
