059109417J Air valve rocker is a double-arm lever that uses a rocker arm shaft as the pivot point and has two arms with different lengths. The short arm end is provided with a threaded hole for inserting the air valve gap adjustment screw. The long arm end is processed into an arc surface that act as the operation face for driving the air valve.
In an engine system with a top-mounted air valve, the rocker arm support is a part of the air intake/exhaust mechanism. The air intake/exhaust mechanism consists of camshaft, tappet, rocker arm, rocker arm shaft, rocker arm support, air valve, air valve spring, and other components. Air valve opening/closing is achieved through movement of the tappet and the rocker arm. The rocker arm is mounted on the support with the aid of the shaft. One end of the arm is driven via the tappet by the camshaft, while the other end is pressed against the valve stem and works in conjunction with the spring to control opening/closing of the air valve.
A metal connecting rod is needed for air valve rocker connection. The cam lifts up the connecting rod to push the rocker arm, thus opening/closing the air valve. However, since a too high rotary speed may easily cause the push rod to break, this design is mostly used for engines with large displacement, low RPM, and high torque output. In a top-mounted camshaft configuration, the push rod can be eliminated, and the transmission mechanism from the camshaft to the air valve can be simplified. It is more suitable for high-speed engine performance. Top-mounted camshaft has broad applications nowadays.

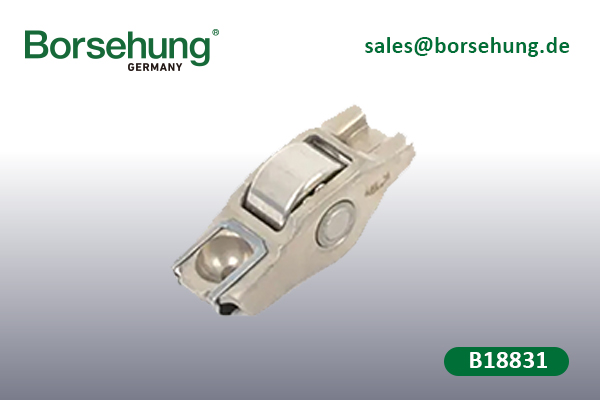

Name: air valve rocker
Borsehung No. : B18831
Ref No. : 059109417J
Applicable models:
Skoda: FAB 11-15/FABI 09-14/KAR 18-/KOD 17-/KODR 18-/OCT 04-18/RAP 13-/RAPI 12-/RO 11-15/SUP 02-15/YET 10-18
VW: AMA 10-17/AME 17-/ART 17-/BE 12-17/BEC 13-17/CA 11-16/CAMP 10-16/CC 12-17/CR 12-16/EOS 09-16/GOC 12-16/GOLF 07-17/GOPL 09-14/GOSV 14-/IMD 08-/JE 06-18/PA 08-16/PACC 09-12/PHAE 02-16/PO 10-18/SCI 09-18/SHA 11-16/TIG 08-17/TIGL 18-/TOU 11-16/TOUA 06-18/TR 10-16/TROC 18-
Seat: AL 11-16/ALT 07-15/ARON 18-/AT 16-/EX 09-14/IB 09-18/LE 06-17/TO 05-16
Audi: A1 11-18/A3 09-17/A3CA 08-17/A4 05-16/A4AR 10-16/A4Q 05-16/A5CA 10-17/A5CO 08-17/A6 05-19/A6AR 07-18/A6Q 05-19/A7 11-18/A8 04-17/A8Q 03-17/AA4C 03-09/AQ2 17-/AQ3 12-18/AQ5 09-17/AQ7 07-15/ATT 07-15
